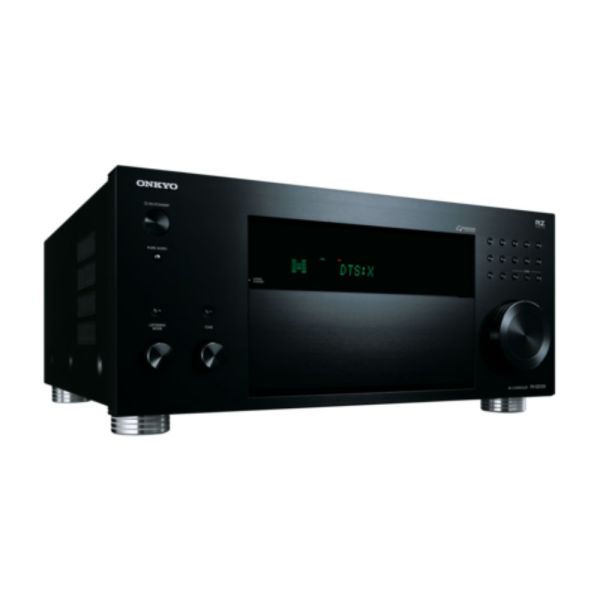

Onkyo PR-RZ5100 11.2-Channel Network A/V Controller
Join the object-based sound revolution with a flexible and sophisticated controller capable of delivering a full-scale multidimensional surround-sound experience without compromise. Dots: x and Dolby Atoms formats are decoded and sent to your power-amp and floor-standing/ in-ceiling speaker layout with utmost fidelity through RCA or XLR pre-outs, unlocking a truly immersive theater experience.
Features:
- Thx Ultra2 plus Theater-Reference Audio performance
- Native 7. 2. 4-Channel DTS: x and Dolby Atoms object-based Audio decoding from 11. 2 multichannel and XLR pre-outs for amplifier connection
- Your Only receiver can now be part of your existing Sons home sound system, or the start of a new one. Instantly upgrade the music streaming capability of your home theater receiver with Sons connect and a free firmware update
Recommended Products
Delivered within 3-5 working days
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
PROCESSING FEATURES
- Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio Decoding
- Separate 384 kHz/32-bit AK4490 Stereo DAC (Front L/R), 2 x 768 kHz/32-bit AK4458 Multichannel DACs (Surround Channels)
- Discrete 192 kHz/24-bit AK4388 Stereo DACs (x2) for Zone 2 and Zone 3
- Multiple 32-bit Digital Signal Processing Engines
- 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
- Theater-Dimensional Virtual Surround Function
- Direct Mode and Pure Audio Mode
CONNECTION FEATURES
- 8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
- Component Video Switching (2 Inputs and 1 Output) and 2 Composite Video Inputs
- 5 Digital Audio Inputs (3 Optical and 2 Coaxial) and 7 Analog Audio Inputs
- Phono Input (MM) for Turntable Connection
- Mass Storage Class USB Memory Playback Capability (Rear Input)
- 11.2 Multichannel and XLR Pre-Outs
- Zone 2 and Zone 3 Pre-/Line Outs
- Dual Subwoofer Pre-Outs
- 12 V Trigger Out (Assignable) with IR Input; Supports IP and RS232
- 6.3 mm Headphone Input
OTHER FEATURES
- Tone Controls (Bass/Treble) ±10 dB for All Channels
- Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
- A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
- New Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Setup Function
- Hybrid Standby Function with HDMI Passthrough
- 40 FM/AM and 40 Internet Radio Station Presets
- RIHD (Remote Interactive Over HDMI) for System Control
- Aluminum Front Panel and Volume Control Knob
- Simple Remote Control
Warranty: 1 year
What Is In The Box
- Onkyo PR-RZ5100 11.2-Channel Network A/V Preamplifier
- Remote Control
- 2 x AA Batteries
- Indoor FM Antenna
- AM Loop Antenna
- Speaker Setup Microphone
Videos
Manufacture Description
Multi-Zone Audio And Video
Pre-outs for Zones 2 and 3 open up distributed audio options throughout the home backed by dedicated Zone 2 and Zone 3 DACs.
Select HDMI terminals support 4K/60 Hz video, 4:4:4 Color Space, HDCP 2.2 copy protection, and High Dynamic Range (HDR), with BT.2020 support, for next-generation UltraHD streaming and broadcasting. A 4k and HDCP 2.2/HDR-compatible Zone 2 HDMI output allows you to enjoy AV sources connected to the receiver in another room.
Thx Certified For Theater Reference Sound
THX certification guarantees the same high-volume sound you experience in a multiplex theater. Your PR-RZ5100 processor has passed more than 2,000 laboratory tests to ensure every aspect of audio performance meets rigorous standards for theater-reference sound.THX Ultra2 Plus is recommended for screen-to-seat viewing distances greater than 12 feet and for room volumes 3000 cubic feet or greater.
*Certification Amendment Effective Date: July 14, 2016.
Works with Sonos
Works with Sonos The awesome home theater you’ve built around your Onkyo receiver can now be part of your existing Sonos Home Sound System*, or the start of a new one.
After a simple set up, your Onkyo receiver will seamlessly tie into Sonos** via Sonos Connect, instantly waking, changing inputs and playing at the volume you command through the familiar Sonos app.
*Sonos Connect required.
**Available via firmware update.
Noiseless Signal Processing With VLSC
No matter how good the DAC, pulse noise is an inevitable consequence of digital-to-analog conversion. VLSC (Vector Linear Shaping Circuitry) compares vectors from the input/output signal and uses that information to erase digital noise. A pure, noise-free analog signal is fed to your amps, resulting in improved detail resolution and clarity.
Listen! Up In The Sky!
With 11.2 pre-amp channels, you can let your speakers deliver a complete multidimensional movie experience in your home theater through a 7.2.4 layout. Dolby Atmos and DTS:X unlock sound from conventional channels and free audio to move above and around the audience for a thoroughly captivating and immersive movie experience.
This Onkyo PR-RZ5100 features Dual 32-bit DSP engines to decode and scale DTS:X and Dolby Atmos to your home theater layout. Additionally, a Dolby surround up-mixer allows for your current channel-based content (that has not been mixed for Dolby Atmos) to be expanded to fill the flexible speaker layouts of a Dolby Atmos system.
Supports HDR10, Dolby Vision*, BT.2020, 4K/60 Hz, and HDCP 2.2
Seven rear HDMI inputs (HDMI 1-7), Main Out, and Sub/Zone 2 Out support pass-through of HDR10, and Dolby Vision*; the BT.2020 4K color standard; 4K/60 Hz video playback; and HDCP 2.2 for premium video content. Front HDMI terminal is ideal for temporary device connections.
*Dolby Vision is supported through inputs 1-5 and is available via firmware update.
