Warm Audio TB12 500 Tone Beast Microphone Preamp with DI
The TB12 "Tone Beast" 500 is a high-voltage microphone preamplifier, utilzing CineMag USA Transformers. Our own reproduction of the legendary original 2520-style discrete opamp found in the classic american consoles of yesteryear. These op-amps will work in any preamplifier or other device which conforms to the 2520-style footprint and +/-16 voltage standard.
Features:
- An amazing preamp that adds the sound of 24 signal paths to your 500 Series rack
- Separate gain and output volume controls let you saturate your circuitry, without overloading your rig
- Selectable input impedance (600 or 150 ohms) offers a dramatic shift in character and response
- Choose between Melcor 1731 and Jensen 918 op amp styles for more or less colored tone
- Op-amps are 6-pin socketed and swappable with any standard 2520-type op amps for further customization
- Select tantalum or electrolytic capacitors with the Clean/Vintage switch for even more character variation
Recommended Products
Delivered within 3-5 working days
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
- UTILIZES PREMIUM GRADE CINEMAG USA TRANSFORMERS.
- 71DB OF GAIN.
- TRANSFORMER SELECTION PROVIDES BOTH STEEL AND 50% NICKEL CINEMAG OUTPUT TRANSFORMERS FOR VARYING CHARACTER.
- TRANSFORMER BYPASS SWITCH ALLOWS FOR REMOVAL OF THE OUTPUT TRANSFORMER FROM THE CIRCUIT.
- DISCRETE OPAMP SELECTION ALLOWS FOR CHOOSING BETWEEN A 1731(VINTAGE) AND 918(CLEANER) STYLE .OPAMP. THESE ARE SOCKETED/SWAPPABLE WITH YOUR CHOICE OF 2520 6 PIN FOOTPRINT OPAMPS.
- IMPEDANCE SWITCH LABELED TONE TO SWITCH BETWEEN 150 AND 600 OHMS INPUT IMPEDANCE. CHANGES THE TONE OF ALL INPUTS (MIC, LINE AND HI-Z.).
- 2 MEG OHM TRUE HI-Z INPUT ON FRONT PANEL SENDS INSTRUMENT SIGNAL THROUGH ENTIRE CIRCUIT INCLUDING BOTH CINEMAG TRANSFORMERS AND THE DISCRETE OPERATIONAL AMPLIFIER. GREAT FOR GUITARS, BASS, KEYBOARDS AND OTHER INSTRUMENTS THAT HAVE A 1/4″ OUTPUT JACK.
- CAPACITOR SELECTION BETWEEN TANTALUM AND ELECTROLYTIC FOR DIFFERENT CHARACTERS.
- 80HZ HIPASS FILTER.
- POLARITY REVERSE.
- +48V PHANTOM POWER.
- OUTPUT ATTENUATION ALLOWING FOR SATURATION FLEXIBILITY OF BOTH THE OPAMPS AND TRANSFORMERS.
- ¼" INSERT FOR THE USE OF INLINE COMPRESSORS, EQ'S ETC.
- BALANCED XLR MIC, BALANCED TRS LINE, AND ¼" INSTRUMENT INPUTS.
- -20DB PAD.
- LED VU METER.
- COMPATIBLE WITH STANDARD 500 SERIES RACKS.
- WARRANTY: 1 Year
What Is In The Box
- Warm Audio TB12 500 Tone Beast Microphone Preamp with DI

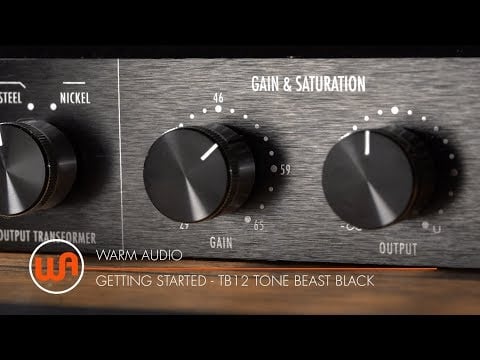

Videos
Manufacture Description
Unleash The Beast
The Tone Beast is a great mic pre with loads of gain that can effortlessly capture an array of sources very well. With top notch CineMag transformers and multiple discrete signal paths, it's hard to beat its big, bold, fully-professional sound at its price.
The Tone Beast is a mic pre that likes to be pushed and when pushed will colorize your signal ever so sweetly. The 2 opamps and 2 output transformers at the flip of their switches won't appear to be much different, but as one drives the pre into harmonic distortion, the unique character of each of these components becomes apparent. Additionally the Tone Beast is customizable and allows for other opamps to be sourced and easily swapped into the unit. I've pulled my best tones from this pre right at the saturation point (as loud as I can push the gain before clipping). The output control on the TB12 allows you to limit the signal exiting the preamp even when pushing the gain to really hot levels, giving you maximum control.
Premium Components
When hand building mic pres I learned a bit about the "subtle" differences component choices can make. A little change here, and another there often times became a huge deal in a finished mix, but often times is not very noticeable at first take. The different component options in the TB12 are subtle, but when driven into saturation are noticeable and can make a big difference to the way your final mix will sound.
