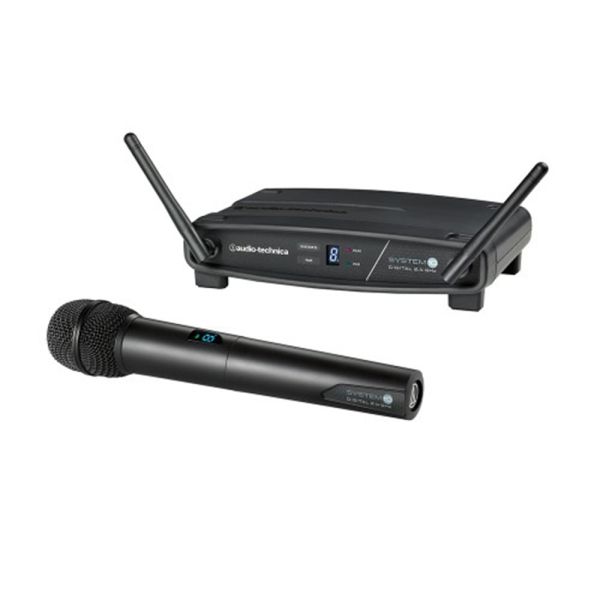

Audio-Technica ATW-1102 Wireless Handheld Microphone
The ATW-1102 System 10 from Audio Technica is a digital wireless handheld microphone solution that can be used for public speaking, live singing and more. The set includes the ATW-R1100 digital receiver and the ATW-T1002 handheld microphone transmitter. It uses 24-bit, 48 kHz digital audio and operates free from TV interference in the 2.4 GHz frequency range. Built for expandability, you can use up to eight systems simultaneously. The ATW-T1002 handheld microphone transmitter features a dynamic, unidirectional element that is designed to reject sound from the back and sides of the mic. This design is ideal for stage use, helping to achieve higher gain before feedback and greater isolation for the speaker or singer. The ATW-T1002 is also equipped with a mute switch and an input level control.
- Use Up To 8 Channels Simultaneously
- Digital 24-bit/48 kHz Wireless
- TV Interference-Free 2.4 GHz Range
- Automatic Frequency Selection
- Frequency, Time & Space Diversity
- Balanced XLR and Unbalanced 1/4" Outputs
- Pair and AF Peak Indicators
Recommended Products
Delivered within 3-5 working days
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
- Type: Wireless microphone
- Operating Frequencies 2.4 GHz ISM band
- Dynamic Range >109 dB (A-weighted), typical
- Total Harmonic Distortion <0.05% typical
- Operating Range 100' (30 m) typical
- Operating Temperature Range 0° C to +40° C (32° F to 104° F)
- Frequency Response 20 Hz to 20 kHz
- Audio Sampling: 24 bit, 48 kHz
- Receiving System Diversity (frequency/time/space)
- Output Connections: 1x XLR, balanced 1x 1/4" (6.3 mm), unbalanced
- Maximum Output Level: Balanced: 0 dBV Unbalanced: +6 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply
- Dimensions 7.48 x 1.82 x 5.06" (190.0 x 46.2 x 128.5 mm)
- Weight: 10.2 oz (290 g)
- RF Output Power 10 mW
- Spurious Emission Following federal and national regulations
- Batteries 2x 1.5V AA (not included)
- Battery Life >7 hours (alkaline)
- Element: Dynamic
- Polar Pattern: Unidirectional
- Dimensions: 10.03" (254.8 mm), long 1.97" (50.0 mm), diameter
- Weight 9.9 oz (280 grams), without batteries
- Warranty:1 year
What Is In The Box
- ATW-T1002 System 10 Handheld Unidirectional Microphone/Transmitter
- ATW-R1100 System 10 Digital Wireless Receiver
- AT8456a Quiet-Flex Mic Stand Clamp
Videos
Manufacture Description
ATW-1102
HIGH FIDELITY DIGITAL SYSTEM
Audio-Technica’s System 10 is the most reliable digital high-fidelity wireless system of its generation. Designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Featuring stackable, contemporary styling, each configuration includes a mono ATW-R1100 receiver and an ATW-T1002 handheld dynamic cardioid microphone. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- 2.4 GHz range – completely free from TV/ 3G interference
- Three levels of diversity assurance: frequency, time, & space
- Automatic frequency selection for seamless, interference-free operation
- Automatic Frequency Selection. Plug & Play. Ease of use and reliability
- Extremely easy operation with instantaneous channel selection, sync, and set-up
- State-of-the-art digital receiver for reliable performance
- Balanced XLR and unbalanced 1/4” output jacks with level control
"2.4GHZ DIGITAL SYSTEM, 24 BITS/48 KHZ”
The System 10 continuously monitors the activity in the 2.4GHz band and automatically adjusts the best signal in case of interference with WLAN routers, Bluetooth devices or other HF microphones. The 2.4 GHz frequency band keeps you away from licensing or frequency coordination issues, or frequencies used by DTV and 4G.
“AUTOMATIC FREQUENCY SELECTION”
The System 10 automatically changes its frequency. Unlike other systems on the market that attach to 2 or 4 frequency, the System 10 will constantly "monitor" the frequencies and switch if necessary. Thus, there are always a good 2 frequencies in the system, and the user does not need to manually intervene.
“A RELIABLE MULTIPLEX SYSTEM”
System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.
HIGH FIDELITY SOUND
The System 10 Pro offers high-fidelity audio quality over the entire frequency band. No compression of signal during transmission and reception.
EASY TO USE
Although the System 10 is a professional and effective wireless system, the user does not need special training to operate. Once unwrapped, it's ready to roll!
