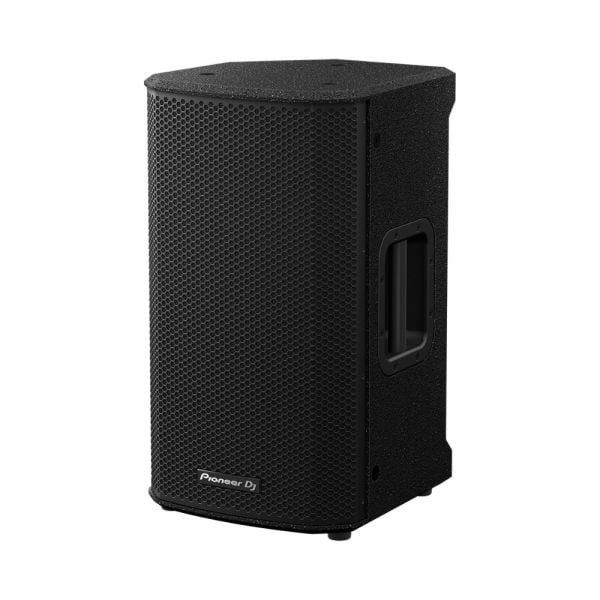

Pioneer DJ XPRS102 10” Full-Range Active Loudspeaker - Black
The XPRS2 Series couples the versatility and mobility of the original XPRS Series with elevated sound-performance and audio intelligibility to deliver a high-caliber speaker system for mobile DJs, live sound, houses of worship, rental and fixed installations.
Recommended Products
Prepaid Product
Customer Also Viewed
Samma3a Review
Technical Specification
Specifications:
- Power supply: 110 V to 240 V (50 Hz/60 Hz)
- Power consumption: 800 W
- Frequency Range: 50 - 20000 Hz
- Width: 299 mm
- Height: 520 mm
- Depth: 310 mm
- Weight: 15.5 kg
System characteristic:
- DSP modes:
- Factory Presets (4 types)
- Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
- EQ (4-band equalizer)
- User Programs (16 presets)
- DSP presets modes:
- Factory presets
- LIVE
- MUSIC
- SPEECH
- MONITOR
- Maximum Sound Pressure: 129 dB
- Cross Over Frequency: 2 kHz
Terminals:
- Inputs:
- MIC / LINE x 1 (Combo)
- HI-Z / LINE x 1 (Combo)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
- Outputs: MIX (XLR)
Speaker:
- Driver:
- 10 inch ferrite LF cone driver
- 1.75 inch compression driver
- Finish: Black paint, Rubber feet
- Handle: 1 metal handle (on left side)
- Pole socket: 35 mm socket
- Rigging point: 10x M10
- EnclosureL Plywood (TSCA)
Protection:
- Amplifier Protection:
- Thermal limiting
- Digital Limiter
- Digital compressor
- Driver Protection: Short circuit protection
- Power unit Protection:
- Primary AC mains overcurrent protection
- Primary AC mains overvoltage protection
Warranty: 1 year
What Is In The Box
- Pioneer DJ XPRS102 10” Full-Range Active Loudspeaker - Black x 1 (not sold as a pair)
- Powerd cord
- Quick start guide
- Important Safety Precautions
Videos
Manufacture Description
Powerful Class D Amplification
The XPRS2 Series employs Class D Amplification with high output wattage for a powerful and premiere audio experience for performers and listeners alike. The XPRS102 and XPRS122 full-range speakers feature Class D 2000 W amplification, while the XPRS1152S and XPRS1182S subwoofers offer Class D 4000 W amplification.
High Quality, Robust Build
Pioneer DJ’s all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.

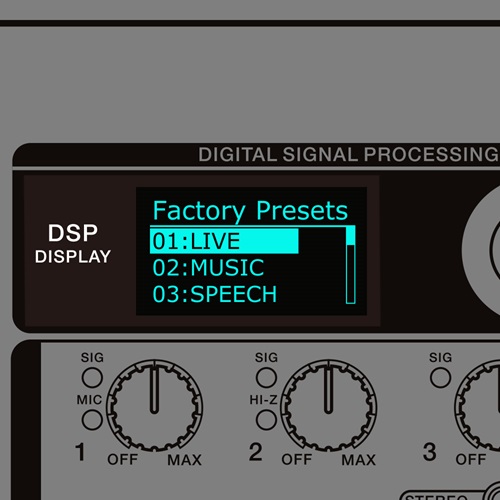

Four DSP Modes
Both of the XPRS2 full-range speakers contain four different DSP preset modes—Live, Music, Speech and Studio Monitoring—to address the needs of different listening environments.
Full-Range Speaker Design
The XPRS102 pairs a 10” woofer and 2.5” voice coil with a 1” exit compression driver and 1.75” voice coil to deliver pristine audio performance. Complete with a maximum sound pressure level (SPL) of 129 dB and frequency response of 50 Hz–20 kHz, the XPRS102 full range speakers help ensure music and spoken word reproduction is accurate and performs as intended.
