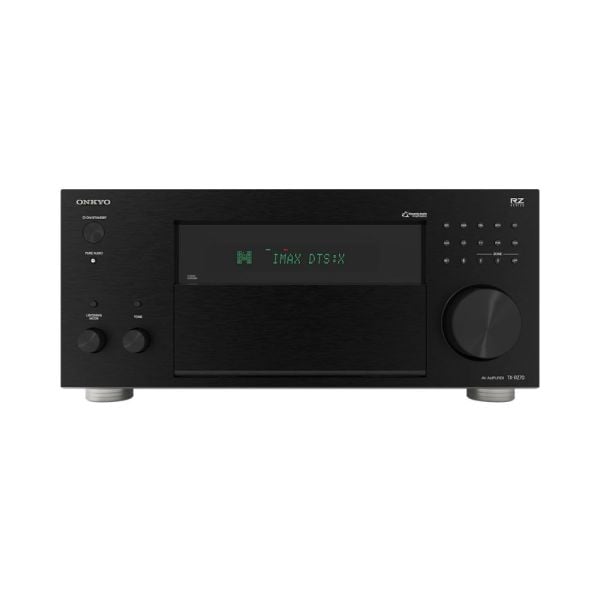

Onkyo TX-RZ70 11.2 Channel AV Receiver

Amplifier:

• Channels:
  • 11.2
  • 7.2.4
• Amplifier Class: Class-AB
• Power Output per Channel: 140 W at 8 Ohms
• Frequency Response: 10 Hz to 100 kHz +1/-3 dB
• THD+N: 0.08% (20 Hz to 20 kHz)
• Speaker Impedance: 4 to 16 Ohms

Audio Processing:

• DTS Compatibility: DTS Neural:X, DTS:X, IMAX Enhanced
• Dolby Compatibility: Dolby Atmos, Dolby Surround
• Auro 3D Support: Yes
• Upmixing Technology: Dolby Surround, DTS Neural:X, Dolby Atmos Height Virtualization Technology

Video:

• HDR Support : Yes, HDR10+/Dolby Vision
• Pass-Through Support: Not Specified by Manufacturer
• Upscaling: No

Connectivity:

• Rear A/V Inputs:
  • 6x HDMI 2.1
  • 4x Stereo RCA Composite
  • 1x Stereo RCA (Phono) with Ground Screw Composite
  • 2x RCA Composite
  • 1x 3RCA Component
  • 2x Digital Coaxial
  • 2x Optical TOSLINK
• Rear A/V Outputs:
  • 3x HDMI 2.1 Zone 2
  • 2x RCA Subwoofer Pre-Out
  • 1x Stereo RCA Composite Zone 3 Pre-/Line-Out
  • 1x Stereo RCA Composite Zone 2 / Zone B Line-Out
  • 3x Stereo RCA Composite Pre-Out
  • 2x Stereo RCA Composite Height Pre-Out
  • 1x RCA Composite Pre-Out
• Front I/O:
  • 1x HDMI Input
  • 1x 1/4" / 6.35 mm Headphone Output
  • 1x 1/8" / 3.5 mm Setup Mic Input
• Other Rear I/O:
  • 1x AM Block Input
  • 1x FM Coaxial F-Type Input
  • 1x RJ45 (Ethernet) Input/Output
  • 1x USB-A Input/Output
  • 1x 1/8" / 3.5 mm (12 V Trigger) Output
  • 1x 1/8" / 3.5 mm (IR) Input
  • 1x DE-9 (RS-232C) Input
• Speaker I/O: 13x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround)
• HDCP Support: Yes, Version 2.3
• Audio Return Channel (ARC): eARC
• HDMI CEC: Yes
• Bi-Amp Capability: Yes

Wireless Connectivity:

• Wi-Fi: Yes
• Bluetooth: Yes
• Supported Audio Codecs: AAC, aptX, aptX HD, SBC
• Wireless Audio Protocols: AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Ready, Spotify Connect

Control:

• Virtual Assistant: Apple AirPlay, Works with Alexa, Works with Google Assistant
• Mobile App Compatible: Yes

Power:

• Input Power: 120 VAC, 60 Hz
• Power Consumption: Maximum: 1095 W

Physical:

• Dimensions (W x H x D): 17.1 x 7.9 x 18.9" / 435.0 x 201.0 x 480.0 mm
• Weight: 48.5 lb / 22 kg

Warranty: 1 year
