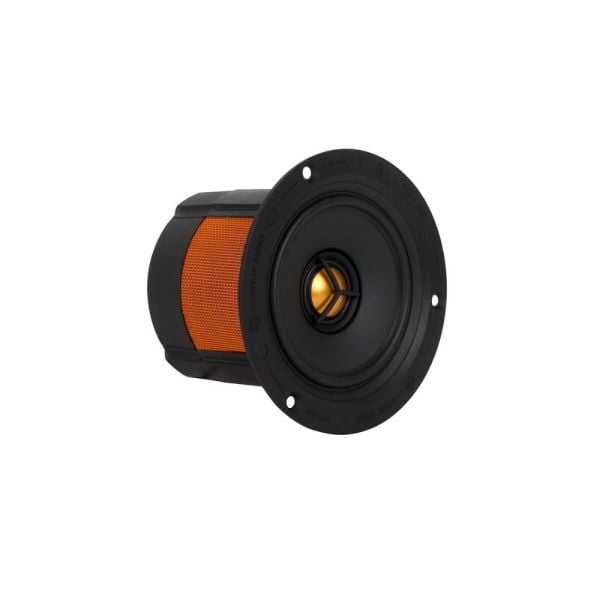

Monitor Audio CF230 In-Ceiling Loudspeaker

Samma3a Rating:
AED1,810.00

Choose from a beautifully flush fit or discreet, trimless retrofit. Round and square options are on offer, while further choice is provided by the option of ceiling mounting or fitting into a standard stud wall construction. Used on its own, or in multiples, the CF230 presents beautiful sounding audio from its specially designed coincident driver. Featuring Monitor Audio’s innovative C-CAM metal cone technology and housing both the bass-midrange driver and tweeter within a single assembly unit, the result is superb quality sound from an incredibly compact driver.

Features:

  • Architectural, discreet aperture speaker
  • Easier and more economical to install than rivals
  • Can be installed in ceilings and standard stud wall construction
  • Can be specified for background music system, or 2.1 system with complementary sub-woofer
  • High-performance C-CAM bass/mid-range and tweeter drivers
  • Coincident driver arrangement - wider dispersion than conventional C.I speakers
  • Flush fit or retrofit applications
  • Unique, patented retrofit bracket system
  • Designed to complement flush fit downlighting systems
  • Smaller, higher performance and less costly to install than rivals
  • Round and square grille options
  • Enclosed unit to stop ingress of dirt and building materials
  • High quality 2-way crossover, featuring metallised film capacitors and low loss steel core inductors
Read More

Customer Also Viewed

Samma3a Review

Not Available

Technical Specification

  • Frequency Response (-6 dB): 100 Hz – 25 kHz
  • Sensitivity (1W@1M): 82.5 dB
  • Nominal Impedance: 8 ohms
  • Maximum SPL:
    • 98 dBA (each – full range)
    • 103.3 dBA (each – Using crossover)
  • Power Handling (RMS):
    • 30 Watts (full range – IEC268-5 rating)
    • 100 Watts Music program (Using High Pass crossover filter @120 Hz)
  • Recommended Amplifier Requirements:
    • 10-30 Watts (full range)
    • 10-100 Watts (Using High Pass crossover filter @120 Hz)
  • Drive Unit Complement: 3" Bass/mid-range driver, featuring C-CAM cone. Coincident mounted 19 mm tweeter with C-CAM Gold Dome
  • Overall Diameter (Including Grille): 112 mm
  • Mounting Depth: 81.5 mm
  • Cut-Out Hole Diameter:
    • Flush 120 mm
    • Retrofit 90 mm
  • Connection: Sprung push type terminals – Gold plated
  • Weight: 0.44 kg (1 lb)
  • Colour / Finish: White grille - paintable
  • Pre-Construction Bracket:
    • Flush Fit - CFB3-R Pre-Construction Bracket (round) and CFB3-SQ Pre-Construction Bracket (square)
    • Retrofit - CFB3-KIT Bracket
    • Pre-construction bracket – Pink (included in above kits)
  • Sold As: Single Unit
  • Warranty: 1 year

What Is In The Box

  • Monitor Audio CF230 In-Ceiling Loudspeaker
