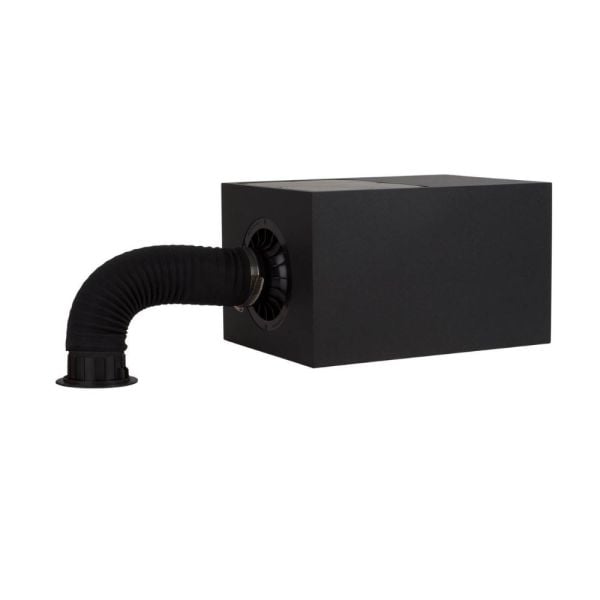

Monitor Audio C180 ICS-8 In-Ceiling Subwoofer
Out of stock
Exclusively available with its specially designed pre-construction to allow a precise edge to plaster and finish, the ICS-8 follows the same visual appearance as the CF230, with round and square flush fit grille options on offer. Integrators can combine an IC8-S with a CF230 system, fit grilles to match and create a stunning sounding audio system from a practically invisible, yet extensive, speaker set up.
Features:
Architectural, discreet pre-construction subwoofer
Can be installed in ceiling, under-floor or suitable cavities
Delivers powerful bass down to 40 Hz
Complements the CF230 in a full-range 2.1 system
High-performance, long throw 20cm driver, featuring C-CAM cone technology
Flush fit mounting kit
Designed to complement flush-fit downlighting systems
Round and square grille options
Sealed bandpass enclosure design - stops ingress of dirt and building materials
Silicon rubber damping pads fitted to cabinet
Read More
Customer Also Viewed
Samma3a Review
Not Available
Technical Specification
Frequency Response (-6 dB): 40 Hz – 120 Hz
Sensitivity (1W@1M): 85 dB
Nominal Impedance: 8 ohms
Maximum SPL: 107 dB
Power Handling (RMS): 150 W (full range – IEC268-5 rating)
Crossover Recommendation: Low pass filter at 120 Hz, 12-24 dB/Octave
Recommended Amplifier Requirements: 150 W
Drive Unit Complement: 20 cm long throw bass driver, featuring C-CAM cone technology
Cut-Out Dimensions: 120 mm
Box Dimensions: 396 x 280 x 235 mm
Vent Dimensions: 427 mm (long) x 75 mm (DIA)
Connection: Sprung push type terminals – Gold plated
Cabinet Support: 15 mm MDF construction, vinyl laminate surface
Construction Material: RoHS, CARB2.
Weight: 10.2 kg (22 lb 8 oz)
Pre-Construction Bracket: Flush Fit - CFB3-R Pre-Construction Bracket (round) and CFB3-SQ Pre-Construction Bracket (square) - Pre-construction bracket – Pink (included in above kits)
Sold As: Single Unit
Warranty: 1 year
What Is In The Box
Monitor Audio C180 ICS-8 In-Ceiling Subwoofer
