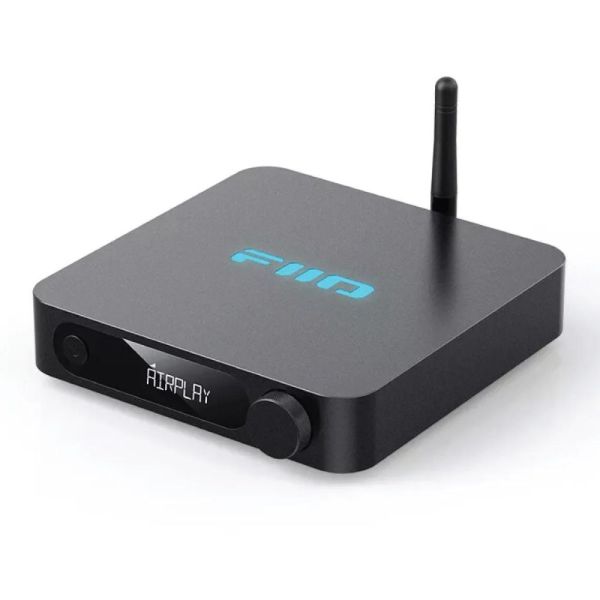

FiiO SR11 Streaming Music Receiver - Black

General Specifications:

• Name/Model: SR11
• Hardware solution" SoC: X2000, WiFi module: AP6256, Power supply: G2257Q51U, Ethernet: YT8531C
• Volume control: Knob/Remote control
• Weight: About 375g
• Dimensions: About 157x133x32.3mm (including feet)
• Working modes: MIX (Roon Ready and AirPlay two in one), Roon Ready, AirPlay Wireless network 5G+2.4G dual-band Wi-Fi 802.11 b/g/n/ac
• Max supported sampling rate for ROON receiving:
  • USB: 768kHz-32bit/DSD256 (DoP)
  • Coaxial: 192kHz-24bit/DSD64
  • Optical: 192kHz-24bit/DSD64
• Max supported sampling rate for AirPlay receiving: All PCM/DSD/MQA will be switched to 44.1kHz-16bit before output
• MQA: USB/Coaxial/Optical all support MQA when in full volume
• Digital output distortion: 0.000006%（0dB 1kHz 192k 24bit）
• Display: LCD
• Remote control: Supports infrared remote control (only the one included in the accessory)
• Display details: Sampling rate, volume level, working mode, output mode, etc.
• Sampling rate display (by LOGO light): 48kHz and below: Cyan; Above 48kHz: Yellow; DSD: Green
• Firmware upgrade: Supports upgrade through a USB flash disk (both USB-A and Type-C ports) FiiO Control: N/A

Buttons and Ports:

• Button: Power button
• Knob: Encoder knob (with volume control knob)
• Digital coaxial out: RCA port
• Digital optical out: Optical port
• USB: USB-A*1 (data transmission)+Type-C*2 (data transmission*1+power supply*1）
• Wired network: Gigabit Ethernet port
• Reset hole: Device on, short press the button in the reset hole 　 　

Power Supply Parameters:

• Power consumption:
• Static current: 250mA (wired network connection, default brightness of screen and LOGO light)
• Coaxial/Optical output current: 250mA (wired network connection, default brightness of screen and LOGO light)
• USB output current: 290mA (wired network connection, default brightness of screen and LOGO light, no power consumption for power amp)
• Power supply: DC 5V/2A
• Battery capacity No battery

Warranty: 1 year
